Rating

• Rated service voltage: 36kV

• Rated power frequency withstand voltage: 70/95kV

• Rated impulse withstand voltage: 170/195kVp

• Rated current:up to 2500A

• Maximum rating of busbars: 2500A

• Short time withstand current: 25/31.5kA 3 seconds

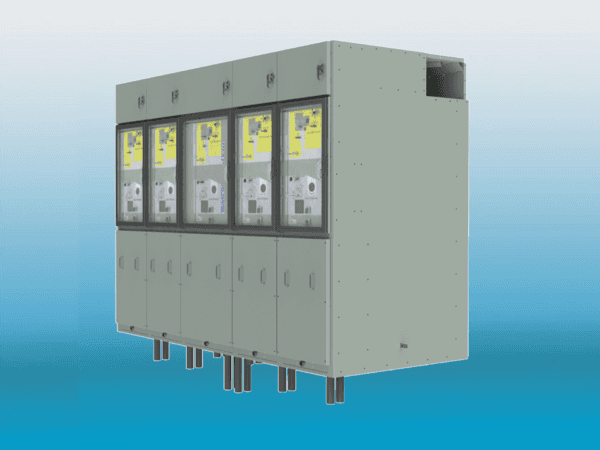

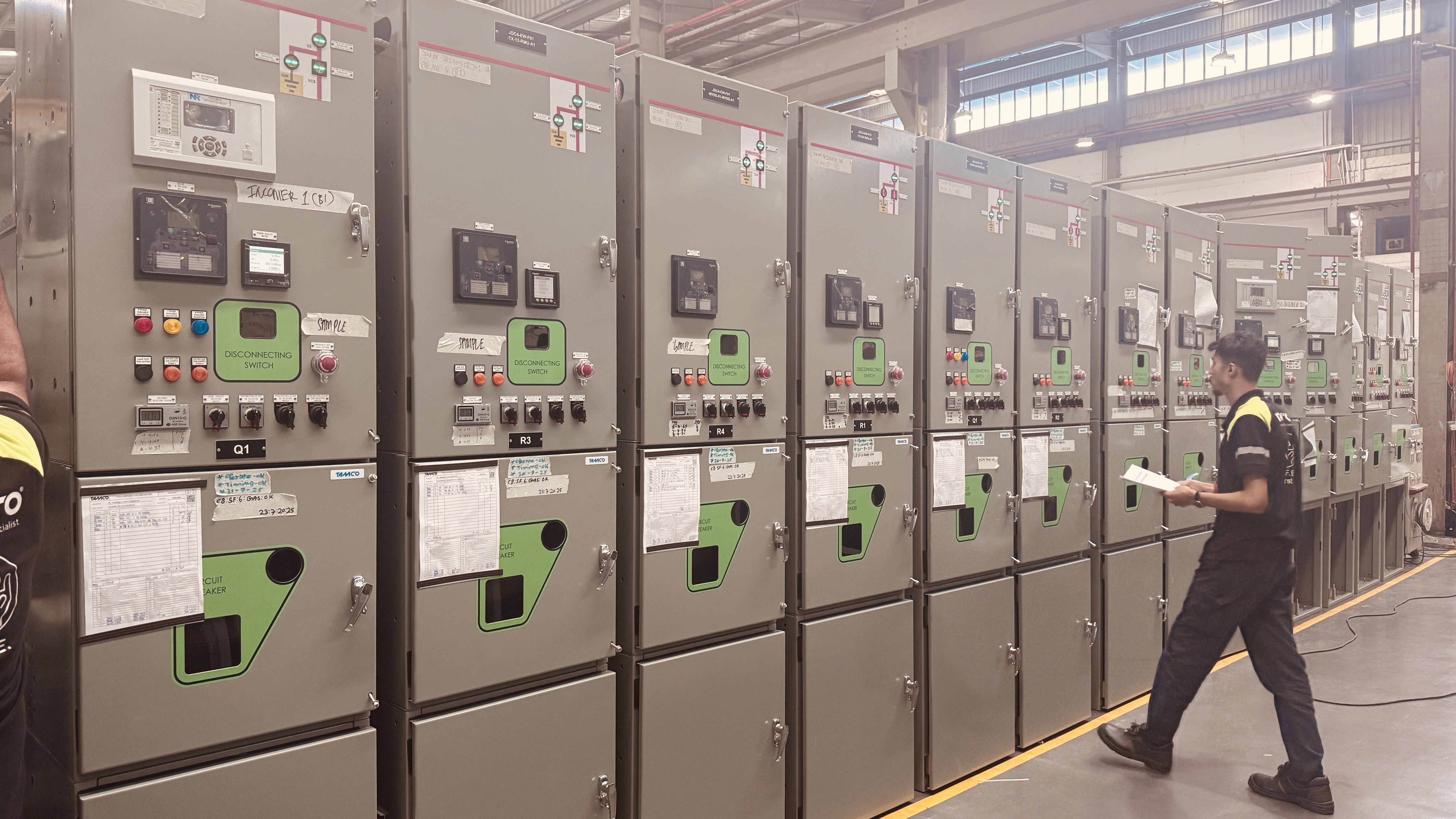

Construction/Features

• Compact foot print with rigid structure

• VCB with SF6 gas insualtion Cable & Busbar are in air with touch proof connections. No SF6 gas handling at site

• Option for busbar in air/SF6 gas

• Safe, positive and fool proof interlocks

• Cable door & VCB interlocked

• Pad-lockable VCB & 3-position motorized switches

• Fully modular design with extension on both sides

• SF6 content approx. 4.5kg

• Front cable entry & no rear clearance required

• Optional top, rear cable entry available
