TECHNICAL SPECIFICATIONS

Rated service voltage: 12 – 36kV

• Rated frequency: 50-60 Hz

• Rated Power 50kVA – 4000kVA

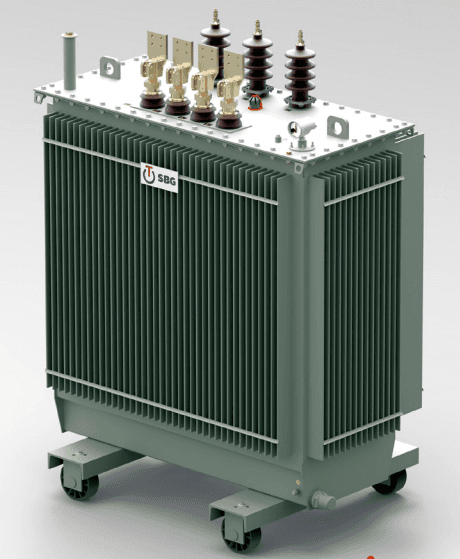

• ​Corrugated tank up to 4 MVA

• Types: Open Bushing, Cable Box, Side Bushings

• Two component painting with min. layer thickness of 125 μm.

• Tank can be manufactured in hot-dip galvanised design upon request.

CONSTRUCTION/FEATURES

• Compliant to ISO 9001: 2008 by TÜV.

• Routine tests (Winding test, Turn test,

• Measurement of winding resistance, measurement of voltage ratio and determination of vector group, measurement of short-circuit voltage and of short-circuit losses, measurement of no-load current and of no-load losses) according to IEC60076.

• Temperature rise, Impulse voltage, Sound/noise level, partial discharge measurement tests according to DIN VDE 0532.
